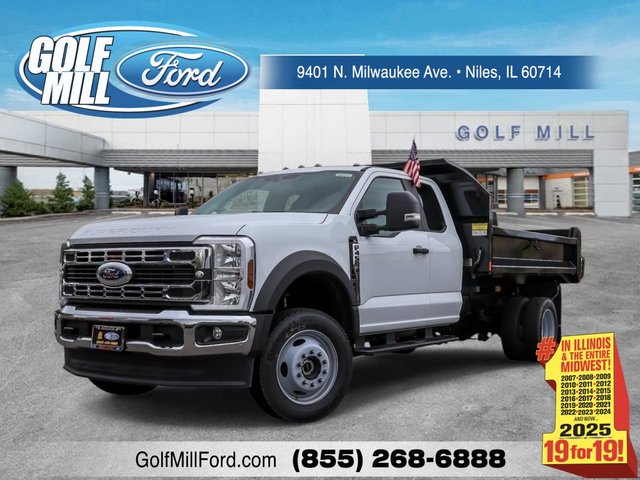

New 2026 Ford Super Duty F-450 DRW XL
- VIN: 1FD9X4HT8TEE62754
- Stock: F260559
New 2026 Ford Super Duty F-450 DRW XL
VIN: 1FD9X4HT8TEE62754STOCK: F260559Basic Info
-
Exterior:Oxford White
-
Drivetrain:4WD
-
Interior:VINYL 40/20/40 SEATS MEDIUM DARK SLATE
-
Transmission:Automatic
-
Engine:6.7 L
Key Features
-
AWD
-
Bluetooth
-
Forward Collision Warning
-
Interior Accents
-
Keyless Entry
-
Lane Departure Warning
-
Side-Impact Air Bags
-
WiFi Hotspot
Description
This Ford Super Duty F-450 DRW boasts a Intercooled Turbo Diesel V-8 6.7 L/406 engine powering this Automatic transmission. White Fender Flares, TRANSMISSION: TORQSHIFT 10-SPEED AUTOMATIC -inc: SelectShift, selectable drive modes: normal, tow/haul, eco, slippery roads and off-road and transmission power take-off provision (STD), TRAILER BRAKE CONTROLLER.
This Ford Super Duty F-450 DRW Features the Following Options
SNOW PLOW PREP PACKAGE -inc: pre-selected springs (see order guide supplemental reference for springs/FGAWR of specific vehicle configurations), Note 1: Restrictions apply; see supplemental reference or body builders layout book for details, Note 2: Also allows for the attachment of a winch, Note 3: Highly recommended to add (86M) dual battery on 7.3L gas engine, Adding (67B) 410 amp dual alternators for diesel engine is highly recommended for max power output, GVWR: 16,000 LB PAYLOAD PACKAGE , TIRES: 225/70RX19.5G BSW TRACTION (TGK) -inc: 4 traction tires on the rear and 2 traction tires on the front, Not recommended for over the road applications; could incur irregular front tire wear and/or NVH, REAR VIEW CAMERA & PREP KIT -inc: Pre-installed content includes cab wiring and frame wiring to the rear most cross member, Upfitters kit includes camera w/mounting bracket, 20' jumper wire and camera mounting/aiming instructions, PROGRAMMABLE ENGINE IDLE SHUTDOWN TIMER -inc: Selection of this option enables the driver to select a time period between 1 to 30 minutes before the engine will shut off after idling, There will not be an option to override this timing, Customers needing to idle their vehicles for longer periods should not select this option, PLATFORM RUNNING BOARDS, OXFORD WHITE, ORDER CODE 650A, LIMITED SLIP W/4.10 AXLE RATIO, FRONT WHEEL WELL LINER (PRE-INSTALLED).
Visit Us Today
Stop by Hawk Ford of St. Charles located at 2525 E Main St, St. Charles, IL 60174 for a quick visit and a great vehicle!
Vehicle Details
Exterior
- Black Front Bumper w/Black Rub Strip/Fascia Accent and 2 Tow Hooks
- Black Fender Flares
- Black Side Windows Trim and Black Front Windshield Trim
- Black Door Handles
- Black Power Heated Side Mirrors w/Convex Spotter, Manual Folding and Turn Signal Indicator
- Manual Extendable Trailer Style Mirrors
- Fixed Rear Window
- Light Tinted Glass
- Variable Intermittent Wipers
- Aluminum Panels
- Front Splash Guards
- Black Grille
- Reverse Opening Rear Doors
- Autolamp Auto On/Off Reflector Halogen Daytime Running Lights Preference Setting Headlamps w/Delay-Off
- Cab Clearance Lights
- Perimeter/Approach Lights
Interior
- 4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement
- 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
- 60-40 Folding Split-Bench Front Facing Fold-Up Cushion Rear Seat
- Manual Tilt/Telescoping Steering Column
- Front Cupholder
- Rear Cupholder
- Compass
- Cruise Control w/Steering Wheel Controls
- Manual Air Conditioning
- HVAC -inc: Underseat Ducts
- Locking Glove Box
- Interior Trim -inc: Chrome Interior Accents
- Full Cloth Headliner
- Urethane Gear Shifter Material
- Day-Night Rearview Mirror
- Passenger Visor Vanity Mirror
- Full Overhead Console w/Storage and 2 12V DC Power Outlets
- Front Map Lights
- Fade-To-Off Interior Lighting
- Full Vinyl/Rubber Floor Covering
- Instrument Panel Covered Bin and Dashboard Storage
- Delayed Accessory Power
- Driver Information Center
- Outside Temp Gauge
- Digital/Analog Appearance
- Seats w/Vinyl Back Material
- Front Center Armrest w/Storage
- Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints
- Perimeter Alarm
- Securilock Anti-Theft Ignition (pats) Immobilizer
- 2 12V DC Power Outlets
- Air Filtration
Entertainment
- Radio: AM/FM Stereo w/MP3 Player -inc: 6 speakers
- Fixed Antenna
- 6 Speakers
- 2 LCD Monitors In The Front
Mechanical
- 4.88 Axle Ratio
- GVWR: 16,500 lb Payload Package
- 50-State Emissions System
- Transmission w/Driver Selectable Mode and Oil Cooler
- Electronic Transfer Case
- Part-Time Four-Wheel Drive
- 68-Amp/Hr 750CCA Maintenance-Free Battery w/Run Down Protection
- 190 Amp Alternator
- Towing Equipment -inc: Trailer Sway Control
- Trailer Wiring Harness
- HD Gas-Pressurized Shock Absorbers
- Front And Rear Anti-Roll Bars
- Firm Suspension
- Hydraulic Power-Assist Steering
- 40 Gal. Fuel Tank
- Single Stainless Steel Exhaust
- Dual Rear Wheels
- Auto Locking Hubs
- Front Suspension w/Coil Springs
- Solid Axle Rear Suspension w/Leaf Springs
- 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist, Hill Hold Control and Electric Parking Brake
- Upfitter Switches
Safety
- Driveline Traction Control
- Side Impact Beams
- Dual Stage Driver And Passenger Seat-Mounted Side Airbags
- Pre-Collision Assist with Automatic Emergency Braking (AEB)
- Collision Mitigation-Front
- Tire Specific Low Tire Pressure Warning
- Dual Stage Driver And Passenger Front Airbags w/Passenger Off Switch
- Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters
- Safety Canopy System Curtain 1st And 2nd Row Airbags
Tech Specs
- Vehicle Name: Ford Super Duty F-450 DRW
- Body Style: SD Super Cab
- Body Code: H
- Drivetrain: Four Wheel Drive
- Passenger Capacity: 6
- Base Curb Weight: 8000
- Gross Axle Wt Rating - Front: 5200
- Gross Axle Wt Rating - Rear: 12880
- Curb Weight - Front: 4121
- Curb Weight - Rear: 3177
- Gross Vehicle Weight Rating Cap: 16500
- Gross Combined Wt Rating: 30000
- Dead Weight Hitch - Max Trailer Wt.: 5000
- Dead Weight Hitch - Max Tongue Wt.: 500
- Wt Distributing Hitch - Max Trailer Wt.: 17500
- Wt Distributing Hitch - Max Tongue Wt.: 1750
- Fifth Wheel Hitch - Max Trailer Wt.: 21300
- Fifth Wheel Hitch - Max Tongue Wt.: 5325
- Maximum Trailering Capacity: 17500
- Engine Order Code: 99T
- Engine Type: Intercooled Turbo Diesel V-8
- Displacement: 6.7 L/406
- Fuel System: Diesel Direct Injection
- SAE Net Horsepower @ RPM: 330 @ 2200
- SAE Net Torque @ RPM: 950 @ 1800
- Trans Order Code: 44G
- Trans Type: 10
- Trans Description Cont.: Automatic w/OD
- Trans Description Cont. Again:
- First Gear Ratio (:1): 4.62
- Second Gear Ratio (:1): 2.92
- Third Gear Ratio (:1): 2.13
- Fourth Gear Ratio (:1): 1.77
- Fifth Gear Ratio (:1): 1.52
- Sixth Gear Ratio (:1): 1.28
- Reverse Ratio (:1): 4.70
- Trans Power Take Off: Yes
- Trans PTO Access: Yes
- Transfer Case Model: Electronic
- Transfer Case Power Take Off: Yes
- Cold Cranking Amps @ 0° F (Primary): 750
- Cold Cranking Amps @ 0° F (2nd): 750
- Maximum Alternator Capacity (amps): 190
- Engine Oil Cooler: None
- Suspension Type - Front: Other
- Suspension Type - Rear: Leaf
- Spring Capacity - Front: 5200
- Spring Capacity - Rear: 12880
- Axle Type - Front: Non-Independent
- Axle Type - Rear: Rigid Axle
- Axle Capacity - Front: 7000
- Axle Capacity - Rear: 12880
- Axle Ratio (:1) - Front: 4.88
- Axle Ratio (:1) - Rear: 4.88
- Front Tire Order Code: TGJ
- Rear Tire Order Code: TGJ
- Spare Tire Order Code:
- Front Tire Size: LT225/70SR19.5
- Rear Tire Size: LT225/70SR19.5
- Spare Tire Size:
- Front Tire Capacity: 7500
- Rear Tire Capacity: 15000
- Revolutions/Mile @ 45 mph - Front: 647
- Revolutions/Mile @ 45 mph - Rear: 647
- Front Wheel Size: 19.5 X 6
- Rear Wheel Size: 19.5 X 6
- Spare Wheel Size:
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Spare Wheel Material:
- Steering Type: Re-Circulating Ball
- Turning Diameter - Curb to Curb: 48.1
- Brake Type: 4-Wheel Disc
- Brake ABS System: 4-Wheel
- Brake ABS System (Second Line): 4-Wheel
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness: 15.4
- Rear Brake Rotor Diam x Thickness: 15.8
- Drum - Rear (Yes or ):
- Rear Drum Diam x Width:
- Fuel Tank Capacity, Approx: 40
- Aux Fuel Tank Capacity, Approx:
- Front Head Room: 40.8
- Front Leg Room: 43.9
- Front Shoulder Room: 66.7
- Front Hip Room: 62.5
- Second Head Room: 40.3
- Second Leg Room: 33.5
- Second Shoulder Room: 65.8
- Second Hip Room: 64.7
- Wheelbase: 168
- Length, Overall: 253.3
- Width, Max w/o mirrors: 80
- Height, Overall: 82.5
- Overhang, Front: 38.3
- Overhang, Rear w/o bumper: 47.2
- Cab to Axle: 60
- Cab to End of Frame: 107.2
- Frame Width, Rear: 34.2
- Ground Clearance, Front: 8.6
- Ground Clearance, Rear: 8.6
- Seventh Gear Ratio (:1): 1.00
- Eighth Gear Ratio (:1): 0.85
- Model Group: F-Series Chassis
- Vehicle Segment: Chassis
- Vehicle Type: Extended Cab
- Body Cab Style: Extended Cab
- Engine Displacement Units: 6.7
- Engine Camshaft: OHV
- Engine Block Type: iron
- Engine Cylinder Count: 8
- Engine Valve Count: 4
- Country of Origin: United States Ford Incomplete Vehicle
Details
- REAR VIEW CAMERA & PREP KIT -inc: Pre-installed content includes cab wiring and frame wiring to the rear most cross member Upfitters kit includes camera w/mounting bracket 20' jumper wire and camera mounting/aiming instructions
- 350 AMP DUAL ALTERNATORS -inc: 190 Amp + 160 Amp
- LIMITED SLIP W/4.10 AXLE RATIO
- EXTERIOR BACKUP ALARM (PRE-INSTALLED)
- ENGINE BLOCK HEATER
- OXFORD WHITE
- FRONT WHEEL WELL LINER (PRE-INSTALLED)
- AUTOMATED EMERGENCY BRAKING (AEB) REMOVAL -inc: Removes Pre-Collision Assist w/Automated Emergency Barking (AEB) and forward collision warning auto high beams post impact braking and audible lane departure warning
- TRANSMISSION: TORQSHIFT 10-SPEED AUTOMATIC -inc: SelectShift selectable drive modes: normal tow/haul eco slippery roads and off-road and transmission power take-off provision (STD)
- ENGINE: 6.7L 4V OHV POWER STROKE V8 TURBO DIESEL B20 -inc: Operator Commanded Regeneration (OCR) Diesel Exhaust Fluid (DEF) tank and manual push-button engine-exhaust braking 4.10 Axle Ratio 250 Amp Alternator Dual 68 AH/65 AGM Battery
- PLATFORM RUNNING BOARDS
- GVWR: 16 000 LB PAYLOAD PACKAGE
- PROGRAMMABLE ENGINE IDLE SHUTDOWN TIMER -inc: Selection of this option enables the driver to select a time period between 1 to 30 minutes before the engine will shut off after idling There will not be an option to override this timing Customers needing to idle their vehicles for longer periods should not select this option
- TRAILER BRAKE CONTROLLER
- DUAL 68 AH/65 AGM BATTERY
- SNOW PLOW PREP PACKAGE -inc: pre-selected springs (see order guide supplemental reference for springs/FGAWR of specific vehicle configurations) Note 1: Restrictions apply; see supplemental reference or body builders layout book for details Note 2: Also allows for the attachment of a winch Note 3: Highly recommended to add (86M) dual battery on 7.3L gas engine Adding (67B) 410 amp dual alternators for diesel engine is highly recommended for max power output
- CENTER HIGH-MOUNTED STOP LAMP (CHMSL)
- TIRES: 225/70RX19.5G BSW TRACTION (TGK) -inc: 4 traction tires on the rear and 2 traction tires on the front Not recommended for over the road applications; could incur irregular front tire wear and/or NVH
- ORDER CODE 650A
- Four Wheel Drive
- Power Steering
- Dual Rear Wheels
- ABS
- 4-Wheel Disc Brakes
- Brake Assist
- Steel Wheels
- Tires - Front All-Season
- Tires - Rear All-Season
- Tow Hooks
- Heated Mirrors
- Power Mirror(s)
- Integrated Turn Signal Mirrors
- Intermittent Wipers
- Variable Speed Intermittent Wipers
- Daytime Running Lights
- Automatic Headlights
- AM/FM Stereo
- MP3 Capability
- Steering Wheel Audio Controls
- Bluetooth Connection
- Telematics
- Auxiliary Audio Input
- Smart Device Integration
- Requires Subscription
- Pass-Through Rear Seat
- Rear Bench Seat
- Adjustable Steering Wheel
- Trip Computer
- Power Windows
- Keyless Entry
- Power Door Locks
- Cruise Control
- A/C
- Vinyl Seats
- Split Bench Seat
- Driver Adjustable Lumbar
- Passenger Vanity Mirror
- WiFi Hotspot
- Security System
- Immobilizer
- Traction Control
- Front Side Air Bag
- Front Collision Mitigation
- Tire Pressure Monitor
- Driver Air Bag
- Passenger Air Bag
- Passenger Air Bag On/Off Switch
- Front Head Air Bag
- Rear Head Air Bag
- 8 Cylinder Engine
- Turbocharged
- Diesel Fuel
- A/T
- Transmission w/Dual Shift Mode
- 10-Speed A/T
