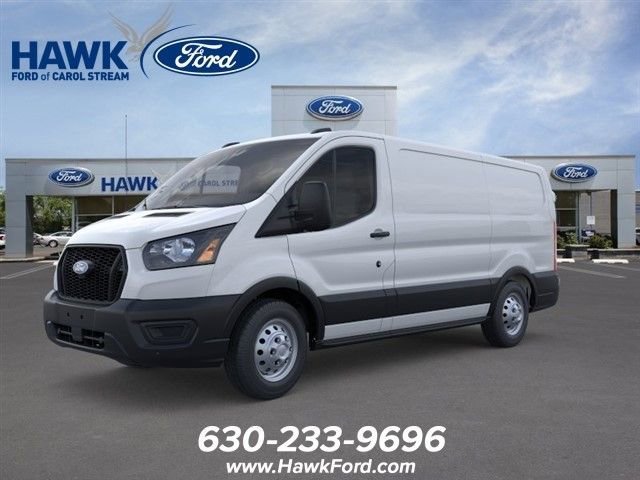

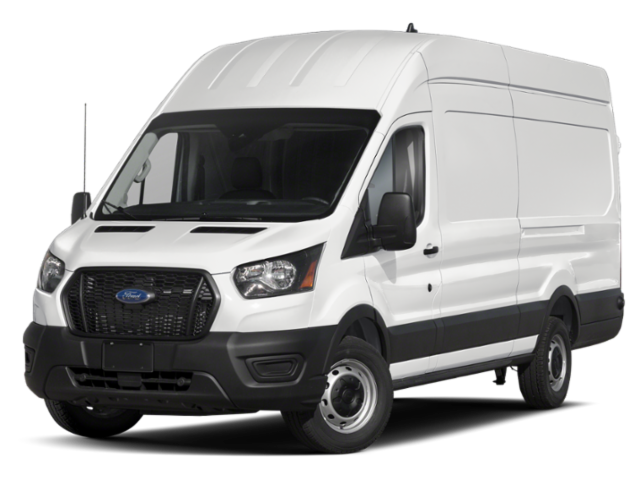

New 2026 Ford Transit Cargo Van Full-size Cargo Van
- VIN: 1FTBF4U89TKB21360
- Stock: F260573
New 2026 Ford Transit Cargo Van Full-size Cargo Van
VIN: 1FTBF4U89TKB21360STOCK: F260573Basic Info
-
Exterior:Oxford White
-
Drivetrain:AWD
-
Interior:Gray
-
Transmission:Automatic
-
Engine:3.5 L
Key Features
-
AWD
-
Backup Camera
-
Bluetooth
-
Keyless Entry
-
Lane Departure Warning
-
Navigation System
-
Rain Sensing Wipers
-
Tow Package
-
WiFi Hotspot
Description
This Ford Transit Cargo Van delivers a Regular Unleaded V-6 3.5 L/213 engine powering this Automatic transmission. WIPER ACTIVATED HEADLAMPS, TRANSMISSION: 10-SPD AUTOMATIC W/OD & SELECTSHIFT -inc: auxiliary transmission oil cooler (STD), TIRE INFLATOR & SEALANT KIT DELETE.
This Ford Transit Cargo Van Comes Equipped with These Options
LOAD AREA PROTECTION PACKAGE -inc: full-height 4mm thick polypropylene cargo area panels, Front & Rear Vinyl Floor Covering, wheel well liners, HEAVY-DUTY TRAILER TOW PACKAGE -inc: Deletes rear tow hook, 4/7 pin connector assembly and rear jumper and relay system for backup/B+/running lights, This package does not include a Trailer Brake Controller (TBC) (67D), Additionally, this option must be added at time of ordering, Neither a Ford or aftermarket trailer brake controller can be added later (after vehicle is built), Frame Mounted Hitch Receiver, Tow/Haul Mode w/Trailering Wiring Provisions , SPARE TIRE & WHEEL -inc: 3 ton jack, tool kit and full-size matching tire, PRO POWER ONBOARD - 400W -inc: High-power outlets deliver up to 400 watts of power, allowing drivers to easily charge smaller corded tools, battery chargers or mobile devices on-site, PASSENGER-SIDE B-PILLAR ASSIST HANDLE, OXFORD WHITE, ORDER CODE 101A, MIDSHIP EXTENDED RANGE FUEL TANK (31 GALLONS) -inc: capless fuel fill, FULL REAR COMPARTMENT LIGHTING -inc: cargo area LED lights at C-pillar, D-pillar and mid-ship and rear compartment LED switch, FRONT OVERHEAD SHELF.
Stop By Today
Test drive this must-see, must-drive, must-own beauty today at Hawk Ford of St. Charles, 2525 E Main St, St. Charles, IL 60174.
Vehicle Details
Exterior
- Tires: 205/75R16C 113/111 AS BSW
- Wheels w/Hub Covers
- Black Front Bumper
- Black Rear Bumper w/1 Tow Hook
- Black Bodyside Cladding and Black Wheel Well Trim
- Black Side Windows Trim and Black Front Windshield Trim
- Black Door Handles
- Light Tinted Glass
- Rain Detecting Variable Intermittent Wipers
- Fully Galvanized Steel Panels
- Black Grille
- Front License Plate Bracket
- Split Swing-Out Rear Cargo Access
- Cab Clearance Lights
- Laminated Glass
Interior
- 4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement
- 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
- Manual Tilt/Telescoping Steering Column
- Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer, Engine Hour Meter and Trip Odometer
- Front Cupholder
- Cruise Control w/Steering Wheel Controls
- Locking Glove Box
- Driver Foot Rest
- Interior Trim -inc: Metal-Look Instrument Panel Insert
- Front Cloth Headliner
- Urethane Gear Shifter Material
- Partial Floor Console w/Storage and 2 12V DC Power Outlets
- Front Map Lights
- Fade-To-Off Interior Lighting
- Front Only Vinyl/Rubber Floor Covering
- Cargo Space Lights
- Driver Alert
- Instrument Panel Bin, Driver And Passenger Door Bins
- Power 1st Row Windows w/Driver 1-Touch Down
- Driver Information Center
- Analog Appearance
- Manual Adjustable Front Head Restraints
- Driver Armrest
- Securilock Anti-Theft Ignition (pats) Immobilizer
- 2 12V DC Power Outlets
Entertainment
- Radio: AM/FM Stereo
- 4 Speakers
- Streaming Audio
- Fixed Antenna
- 1 LCD Monitor In The Front
- Real-Time Traffic Display
Mechanical
- Engine: 3.5L PFDi V6 Flex-Fuel -inc: port injection
- GVWR: 9,950 lb
- 50-State Emissions System
- Automatic Full-Time All-Wheel
- 70-Amp/Hr Maintenance-Free Battery w/Run Down Protection
- 250 Amp Alternator
- 3977# Maximum Payload
- Gas-Pressurized Front Shock Absorbers and HD Gas-Pressurized Rear Shock Absorbers
- Front Anti-Roll Bar
- Electric Power-Assist Steering
- 25.1 Gal. Fuel Tank
- Single Stainless Steel Exhaust
- Permanent Locking Hubs
- Strut Front Suspension w/Coil Springs
- Solid Axle Rear Suspension w/Leaf Springs
- 4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist and Hill Hold Control
Safety
- Side Impact Beams
- PCA with AEB and Intersection Assist
- Collision Mitigation-Front
- Low Tire Pressure Warning
- Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters and Pretensioners
Tech Specs
- Vehicle Name: Ford Transit Cargo Van
- Body Style: High Roof HD Ext. Van
- Body Code: V
- Drivetrain: All Wheel Drive
- Passenger Capacity: 2
- Base Curb Weight: 5973
- Gross Axle Wt Rating - Front: 4630
- Gross Axle Wt Rating - Rear: 6835
- Curb Weight - Front: 3142
- Curb Weight - Rear: 2831
- Gross Vehicle Weight Rating Cap: 9950
- Fuel Economy Est-Combined: - TBD -
- EPA Fuel Economy Est - City: - TBD -
- EPA Fuel Economy Est - Hwy: - TBD -
- Gross Combined Wt Rating: 12000
- Dead Weight Hitch - Max Trailer Wt.: 5000
- Dead Weight Hitch - Max Tongue Wt.: 500
- Wt Distributing Hitch - Max Trailer Wt.: 5400
- Wt Distributing Hitch - Max Tongue Wt.: 540
- Maximum Trailering Capacity: 5400
- Engine Order Code: 998
- Engine Type: Regular Unleaded V-6
- Displacement: 3.5 L/213
- Fuel System: Port/Direct Injection
- SAE Net Horsepower @ RPM: 275 @ 6250
- SAE Net Torque @ RPM: 260 @ 4000
- Trans Order Code: 44U
- Trans Type: 10
- Trans Description Cont.: Automatic w/OD
- Trans Description Cont. Again:
- First Gear Ratio (:1): 4.69
- Second Gear Ratio (:1): 2.98
- Third Gear Ratio (:1): 2.15
- Fourth Gear Ratio (:1): 1.77
- Fifth Gear Ratio (:1): 1.52
- Sixth Gear Ratio (:1): 1.27
- Reverse Ratio (:1): 4.87
- Trans PTO Access: No
- Transfer Case Model: None
- Transfer Case Power Take Off: No
- Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
- Maximum Alternator Capacity (amps): 250
- Engine Oil Cooler: None
- Suspension Type - Front: Strut
- Suspension Type - Rear: Leaf
- Axle Type - Front: Independent
- Axle Type - Rear: Rigid Axle
- Axle Ratio (:1) - Front: 4.10
- Axle Ratio (:1) - Rear: 4.10
- Front Tire Order Code:
- Rear Tire Order Code:
- Spare Tire Order Code:
- Front Tire Size: LT205/75RR16
- Rear Tire Size: LT205/75RR16
- Spare Tire Size:
- Revolutions/Mile @ 45 mph - Front: 718
- Revolutions/Mile @ 45 mph - Rear: 718
- Front Wheel Size: 16 X 6
- Rear Wheel Size: 16 X 6
- Spare Wheel Size:
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Spare Wheel Material:
- Steering Type: Rack-Pinion
- Turning Diameter - Curb to Curb: 47.8
- Brake Type: 4-Wheel Disc
- Brake ABS System: 4-Wheel
- Brake ABS System (Second Line): 4-Wheel
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness: 12.1
- Rear Brake Rotor Diam x Thickness: 12.1
- Drum - Rear (Yes or ):
- Rear Drum Diam x Width:
- Fuel Tank Capacity, Approx: 25.1
- Front Head Room: 56.6
- Front Leg Room: 41.3
- Front Shoulder Room: 67.9
- Front Hip Room: 60.7
- Wheelbase: 148
- Length, Overall: 263.9
- Width, Max w/o mirrors: 81.3
- Height, Overall: 110.2
- Overhang, Front: 40.3
- Ground to Top of Load Floor: 28
- Rear Door Type: Split Swing-Out
- Side Door Type: Sliding
- Cargo Area Length @ Floor to Seat 1: 172.2
- Cargo Area Width @ Beltline: 70.2
- Cargo Box Width @ Wheelhousings: 45.4
- Cargo Box (Area) Height: 81.5
- Seventh Gear Ratio (:1): 1.00
- Eighth Gear Ratio (:1): 0.85
- Model Group: Transit
- Vehicle Segment: Large Van
- Vehicle Type: Extended Cargo Van
- Body Cab Style: Extended Cargo Van
- Engine Displacement Units: 3.5
- Engine Camshaft: DOHC
- Engine Block Type: aluminum
- Engine Cylinder Count: 6
- Engine Valve Count: 4
- Country of Origin: United States Ford
Details
- HEAVY-DUTY TRAILER TOW PACKAGE -inc: Deletes rear tow hook 4/7 pin connector assembly and rear jumper and relay system for backup/B+/running lights This package does not include a Trailer Brake Controller (TBC) (67D) Additionally this option must be added at time of ordering Neither a Ford or aftermarket trailer brake controller can be added later (after vehicle is built) Frame Mounted Hitch Receiver Tow/Haul Mode w/Trailering Wiring Provisions
- MIDSHIP EXTENDED RANGE FUEL TANK (31 GALLONS) -inc: capless fuel fill
- FRONT & REAR VINYL FLOOR COVERING -inc: wheel well liners
- SPARE TIRE & WHEEL -inc: 3 ton jack tool kit and full-size matching tire
- DARK PALAZZO GRAY CLOTH BUCKET SEATS W/ARMRESTS -inc: 2-way manual driver seat w/lumbar and 2-way manual passenger seat
- TRANSMISSION: 10-SPD AUTOMATIC W/OD & SELECTSHIFT -inc: auxiliary transmission oil cooler (STD)
- 4.10 LIMITED-SLIP AXLE RATIO (STD)
- PRO POWER ONBOARD - 400W -inc: High-power outlets deliver up to 400 watts of power allowing drivers to easily charge smaller corded tools battery chargers or mobile devices on-site
- ENGINE: 3.5L PFDI V6 FLEX-FUEL -inc: port injection (STD)
- FRONT LICENSE PLATE BRACKET
- TIRE INFLATOR & SEALANT KIT DELETE
- FULL REAR COMPARTMENT LIGHTING -inc: cargo area LED lights at C-pillar D-pillar and mid-ship and rear compartment LED switch
- FRONT OVERHEAD SHELF
- 2 ADDITIONAL KEYS (4 TOTAL) -inc: key fobs
- WIPER ACTIVATED HEADLAMPS
- ORDER CODE 101A
- PASSENGER-SIDE B-PILLAR ASSIST HANDLE
- OXFORD WHITE
- DUAL AGM BATTERIES (70 AMP-HR EACH)
- LOAD AREA PROTECTION PACKAGE -inc: full-height 4mm thick polypropylene cargo area panels Front & Rear Vinyl Floor Covering wheel well liners
- Locking/Limited Slip Differential
- All Wheel Drive
- Power Steering
- ABS
- 4-Wheel Disc Brakes
- Brake Assist
- Dual Rear Wheels
- Steel Wheels
- Tires - Front All-Season
- Tires - Front Performance
- Tires - Rear All-Season
- Tires - Rear Performance
- Tow Hooks
- Power Mirror(s)
- Intermittent Wipers
- Variable Speed Intermittent Wipers
- Rain Sensing Wipers
- Third Passenger Door
- Power Door Locks
- Automatic Headlights
- Automatic Highbeams
- AM/FM Stereo
- MP3 Capability
- Steering Wheel Audio Controls
- Auxiliary Audio Input
- Navigation System
- WiFi Hotspot
- Vinyl Seats
- Bucket Seats
- Adjustable Steering Wheel
- Keyless Start
- Keyless Entry
- Cruise Control
- A/C
- Driver Monitoring
- Bluetooth Connection
- Telematics
- Smart Device Integration
- Requires Subscription
- Power Windows
- Immobilizer
- Traction Control
- Stability Control
- Front Side Air Bag
- Rear Parking Aid
- Lane Departure Warning
- Lane Keeping Assist
- Front Collision Mitigation
- Tire Pressure Monitor
- Driver Air Bag
- Passenger Air Bag
- Passenger Air Bag On/Off Switch
- Front Head Air Bag
- Passenger Air Bag Sensor
- Back-Up Camera
- V6 Cylinder Engine
- A/T
- Transmission w/Dual Shift Mode
- Flex Fuel Capability
- 10-Speed A/T
